Azure Cloud Pentest Troubleshooting¶

This page covers common errors you may encounter during Azure Cloud connection setup or at pentest launch.

Connection Setup Errors¶

Admin Consent Shows AADSTS700016¶

Symptom: After clicking Create Connection, you're redirected to Azure but see a Microsoft sign-in error instead of the admin consent prompt:

AADSTS700016: Application with identifier was not found in the directory

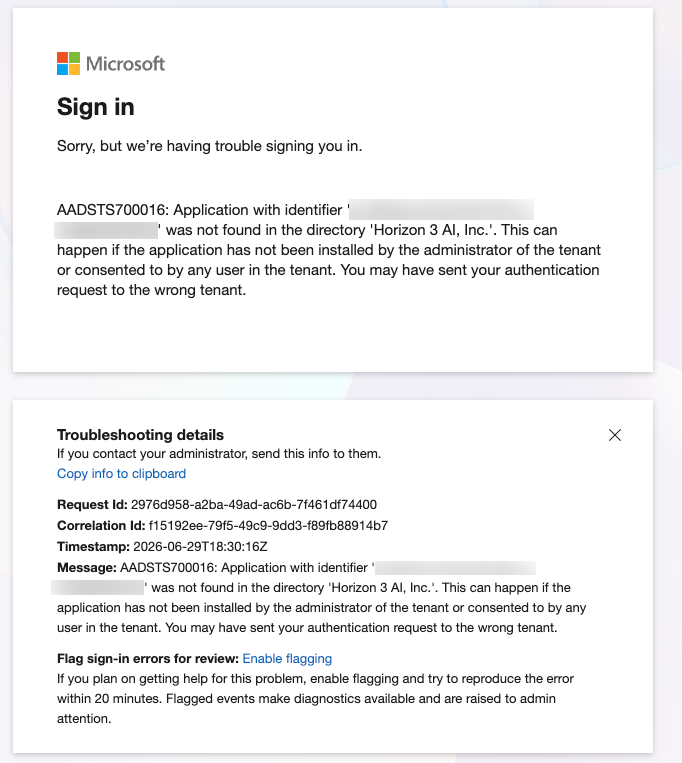

Microsoft sign-in error page showing AADSTS700016 with troubleshooting details.

Cause: The Horizon3 Cloud Connector multi-tenant application hasn't finished replicating to your tenant yet.

Fix: Refresh the page. The admin consent prompt should appear within 10–15 seconds.

Admin Consent Returns a Microsoft Error Page¶

Symptom: After clicking Accept on the admin consent screen, Microsoft redirects you to an error page instead of back to NodeZero.

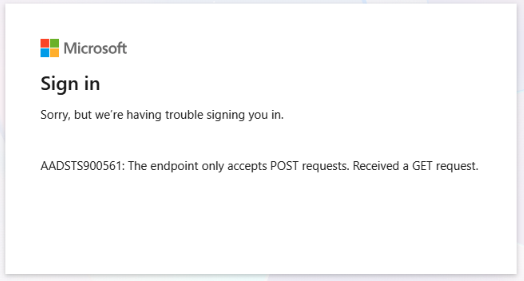

Microsoft error page displayed after clicking Accept on the admin consent screen.

Fix: Clear your browser's cookies and cache, then return to NodeZero and click Create Connection again to restart the consent flow.

Pentest Launch Errors¶

Subnet Blocked by NSG¶

Symptom: After selecting a subnet, the Deployment section shows:

The selected subnet has a network security group that blocks outbound traffic. Please select a different subnet.

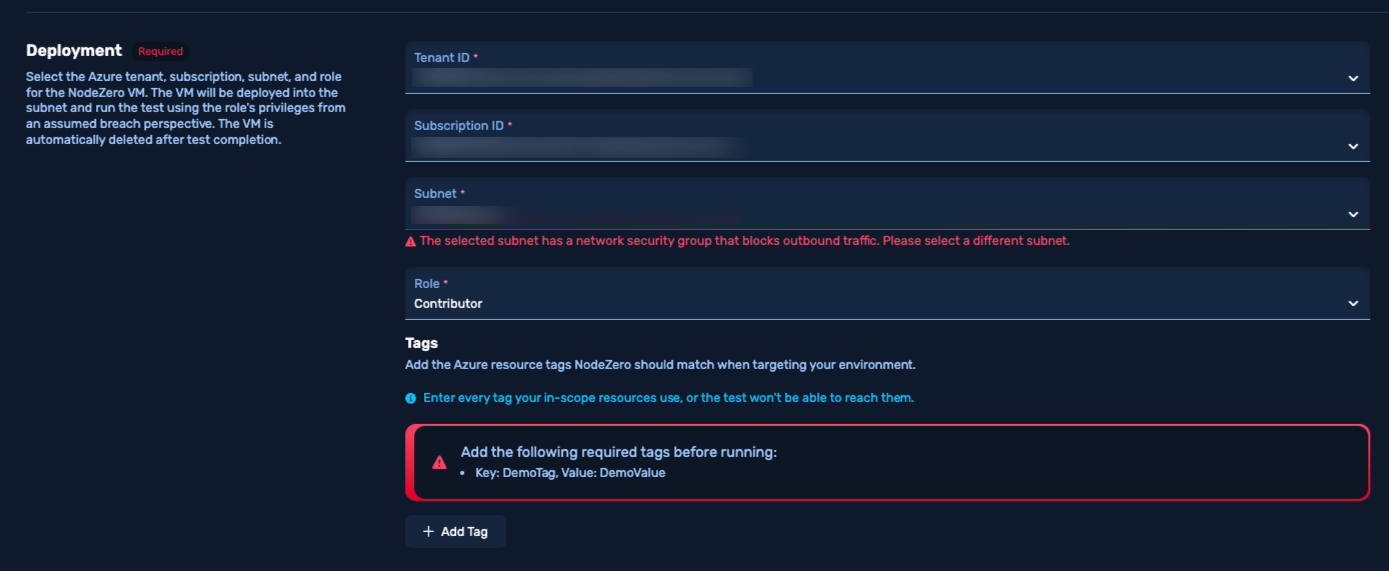

Deployment section of the pentest config form showing the NSG blocking error beneath the Subnet dropdown.

Fix: Select a different subnet that allows outbound traffic, or modify the NSG on the affected subnet to permit outbound connectivity. See Private subnet enabled if there's no NSG rule but the error still appears.

Private Subnet Enabled¶

Symptom: The subnet outbound error appears even though no NSG rule is blocking traffic.

Cause: The subnet has Enable private subnet (no default outbound access) checked in Azure, which removes default outbound connectivity regardless of NSG rules.

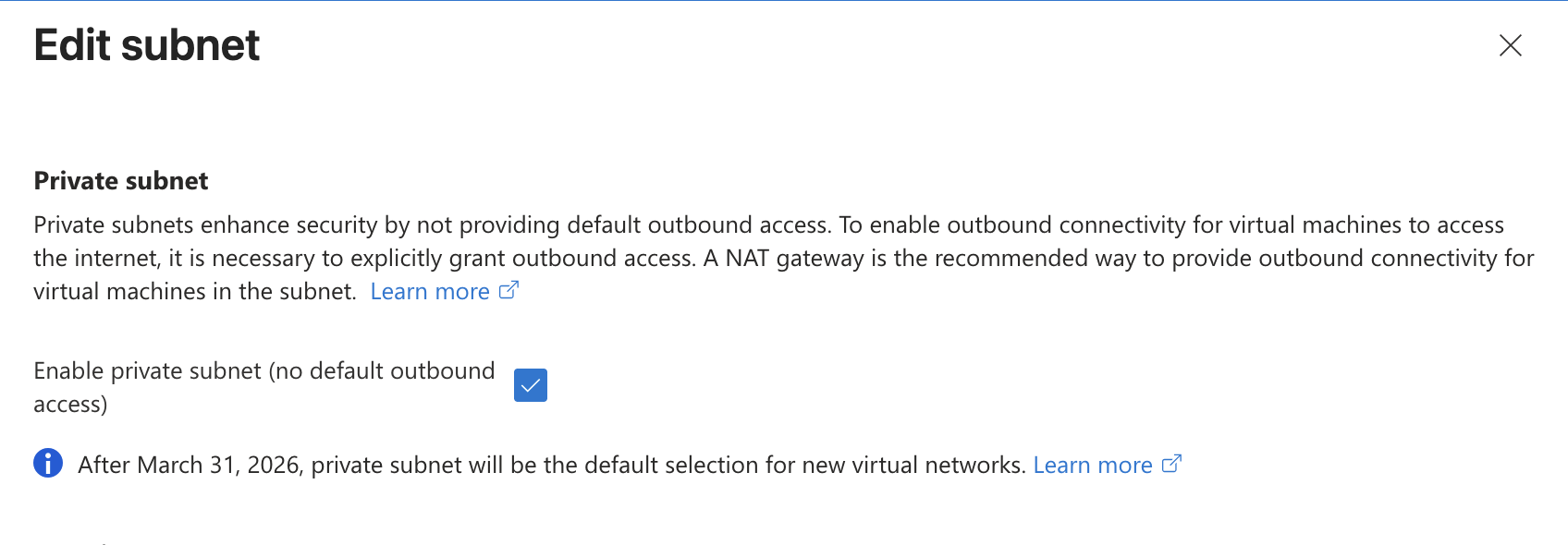

Azure Edit subnet panel showing the Enable private subnet checkbox checked.

Fix: In the Azure portal, open the subnet settings and uncheck Enable private subnet. Alternatively, attach a NAT gateway to the subnet to provide explicit outbound connectivity.

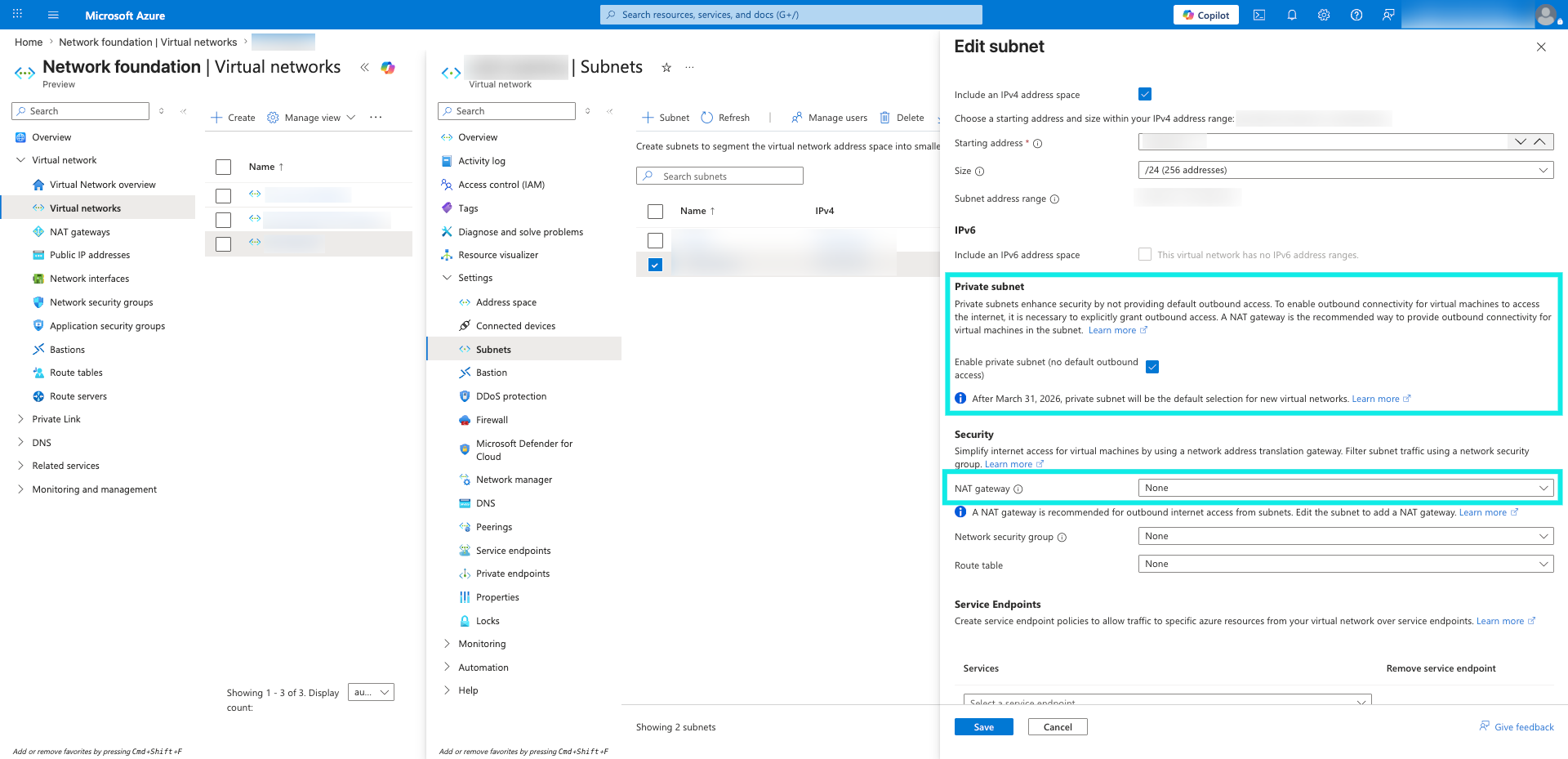

Azure virtual network subnet edit panel showing the Private subnet and NAT gateway settings.

Insufficient VM Quota¶

Symptom: After selecting a subnet, the form shows:

Your Azure account does not have enough VM quota space to launch the VM. Please reach out to your IT admin to increase the quota.

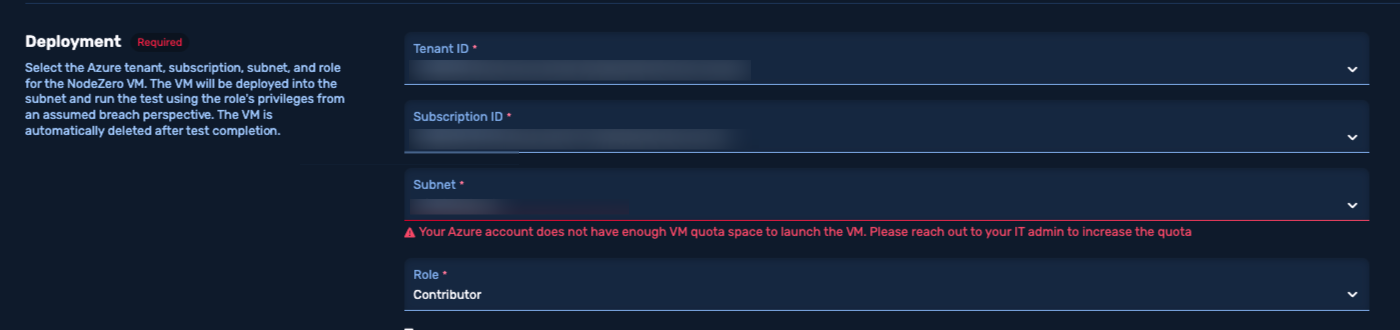

Deployment section showing the VM quota error beneath the Subnet dropdown.

Fix: NodeZero tries several equivalent VM sizes, so only one of their families needs headroom. Ask your Azure administrator to increase the vCPU quota for any one of the following in the target region, or select a different subscription that has sufficient quota.

Your VNet's region	Quota to increase (any one)
East US	Standard Dasv7 Family vCPUs, or Standard Dsv7 Family vCPUs
All other regions	Standard Dsv6 Family vCPUs, Standard Dsv7 Family vCPUs, or Standard Dav6 Family vCPUs

Total Regional vCPUs is a separate quota bucket that the VM also draws from, so it needs at least 4 cores free regardless of which family you raise.

Azure Policy Blocks Deployment¶

Symptom: A banner in the Deployment section reads:

Azure policy blocks this deployment:
None of NodeZero's VM SKUs [...] are in the policy allowlist (allowed: [...]). NodeZero cannot launch a pentest VM in this subscription until at least one of them is added or the assignment is removed.

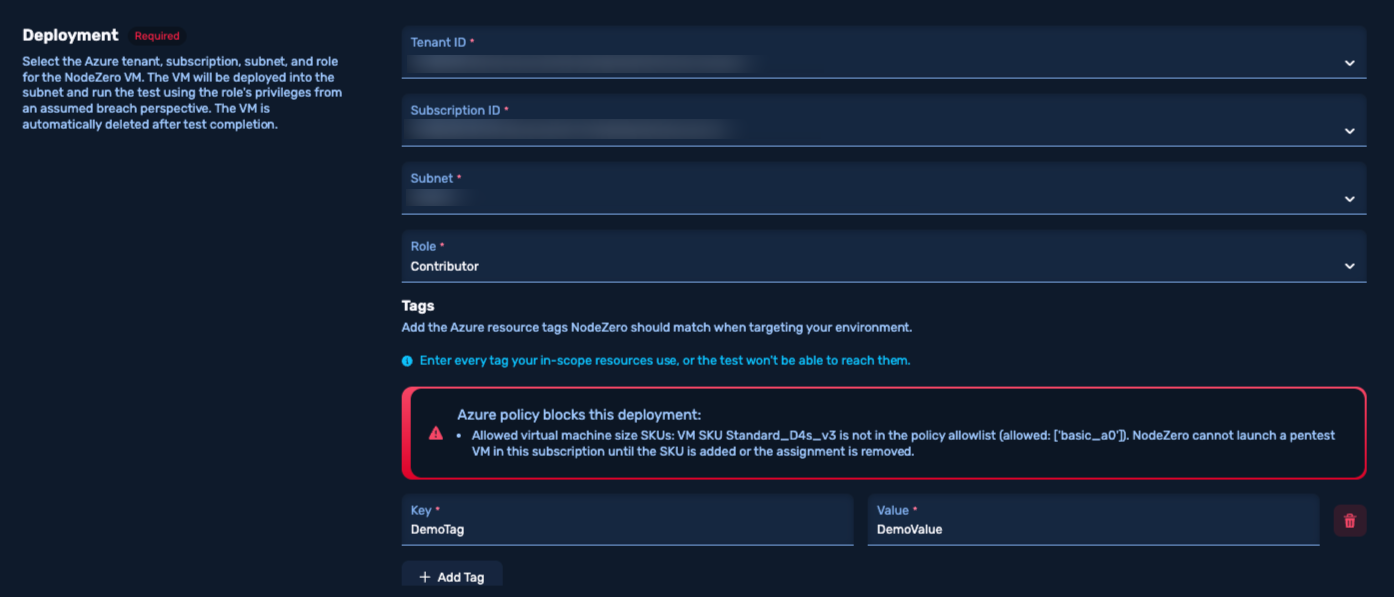

Deployment section showing the Azure policy block error listing the disallowed VM SKU.

Fix: Work with your Azure administrator to expand the allowed VM SKU policy to include at least one of the sizes that NodeZero tries in the affected region. These sizes are:

Standard_D4as_v7 or Standard_D4s_v7 in East US.
Standard_D4s_v6, Standard_D4s_v7, or Standard_D4as_v6 elsewhere.

Alternatively, temporarily exempt the NodeZero resource group from the policy assignment.

Missing Required Resource Tags¶

Symptom: A banner in the Tags section reads:

Add the following required tags before running:
• Key: [tag key], Value: [tag value]

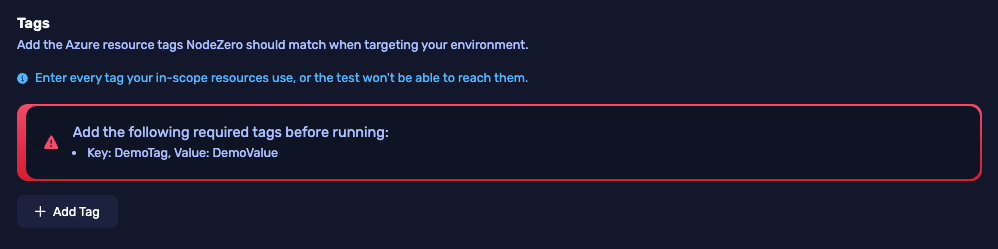

Tags section showing a required tags banner listing a key/value pair that must be added.

Cause: Your Azure environment enforces required tags via policy. NodeZero surfaces these tags so you can add them before launch — without them, the deployed VM won't be visible to your in-scope resources.

Fix: Add each required key/value pair using + Add Tag in the Tags section before clicking Run Pentest. Both the tag error and any subnet NSG error must be resolved before the form will submit.
